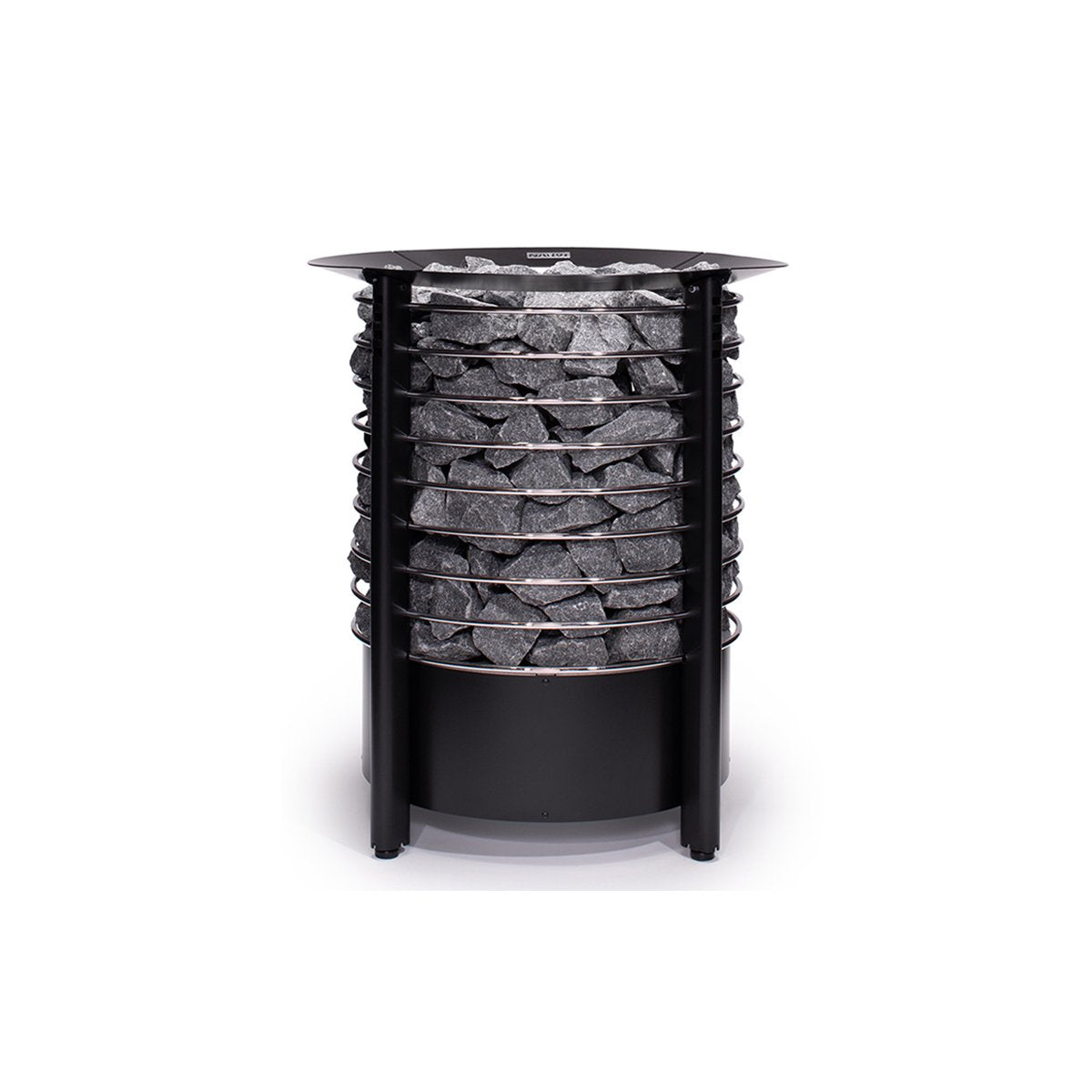

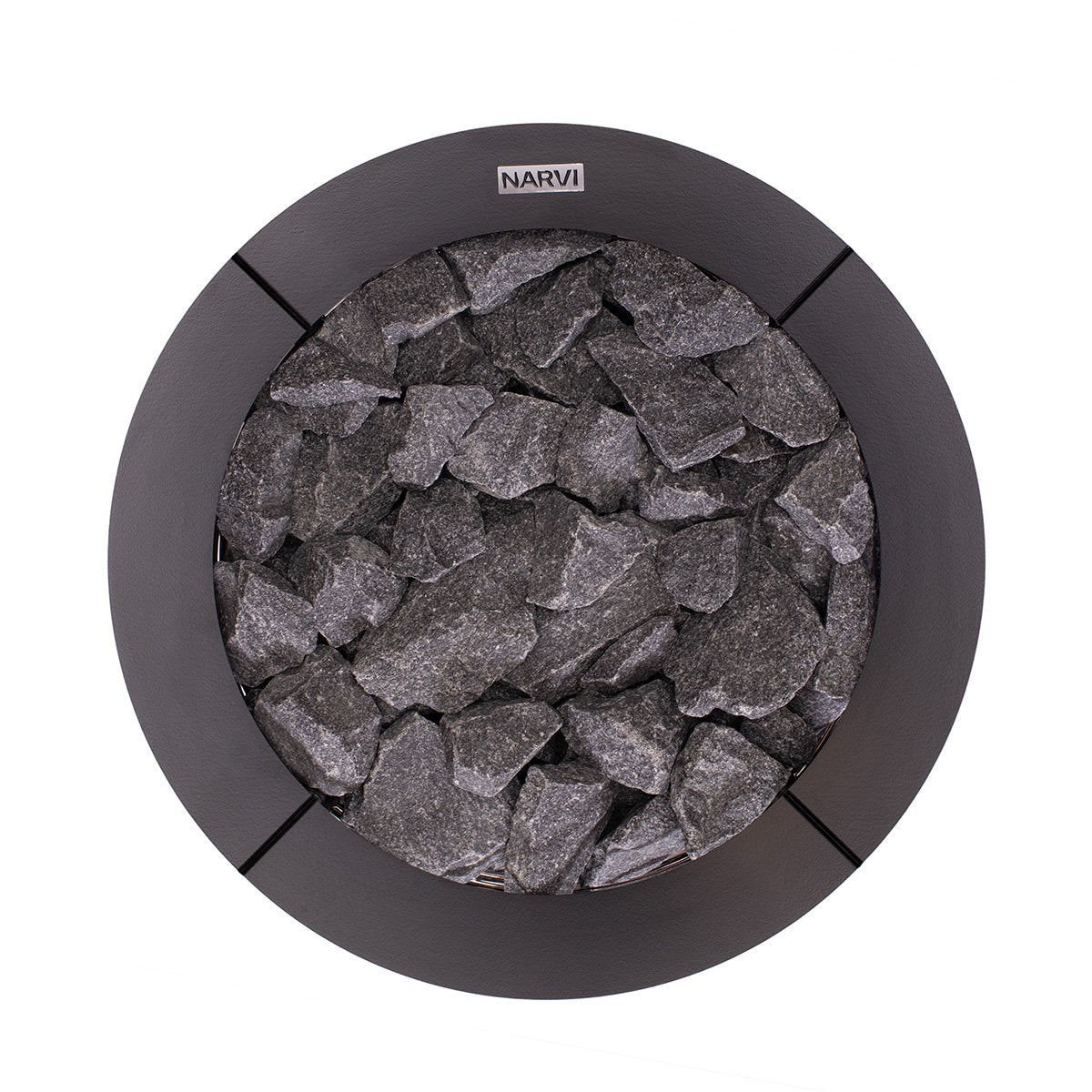

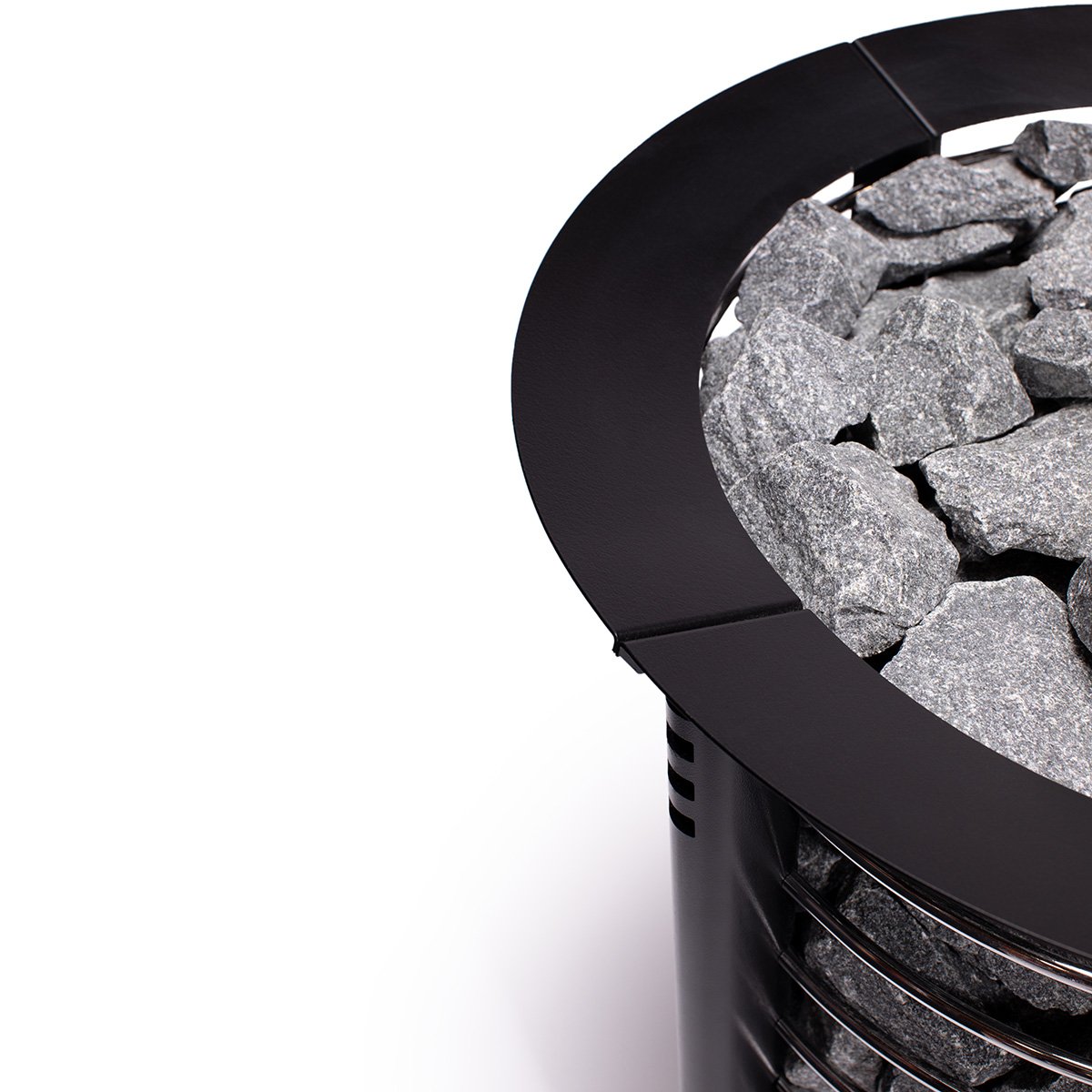

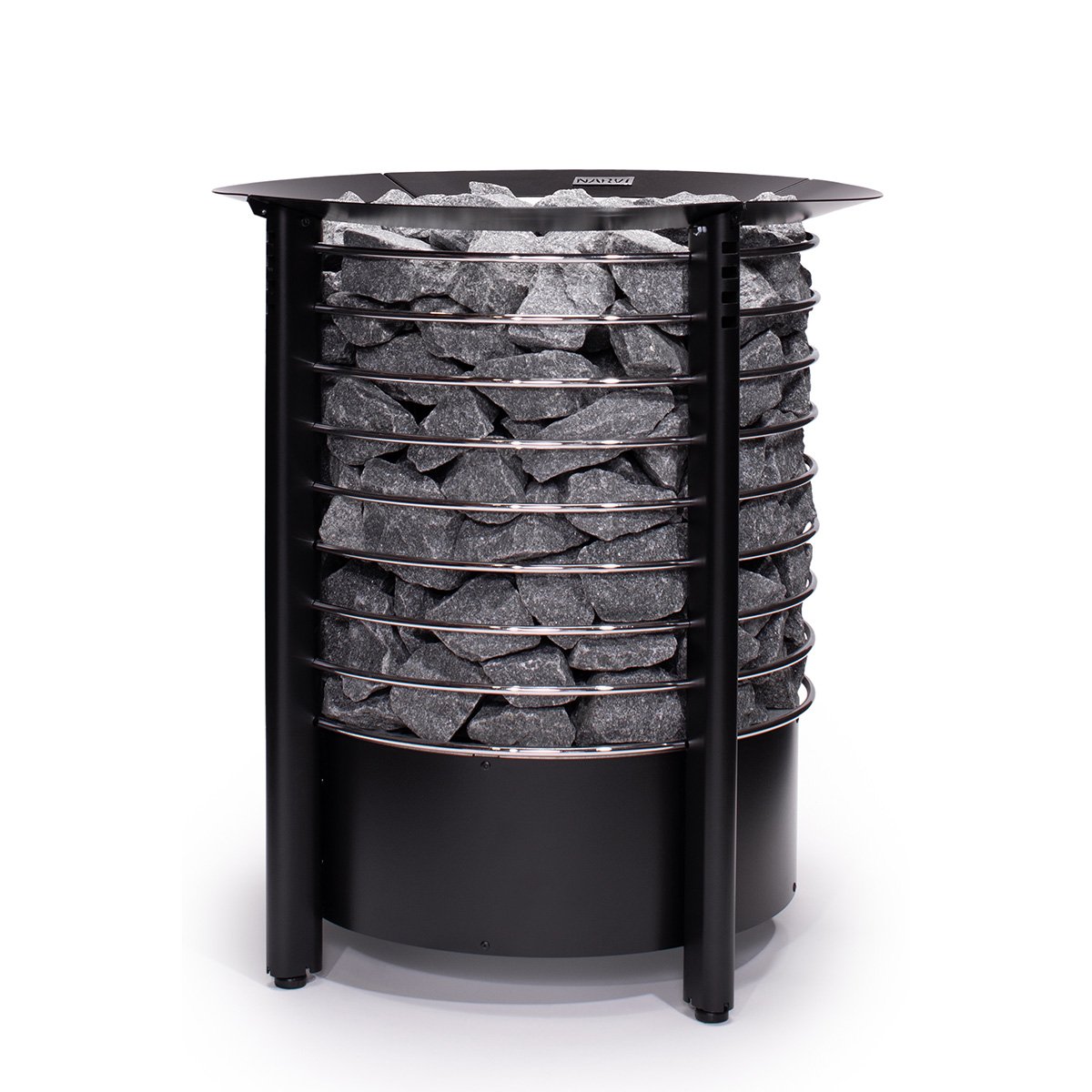

Narvi Peak
Narvi Peak heater is a Finnish-made electric heater that gives a top-class spa experience with its captivating appearance and large number of stones. Thanks to its round, self-standing appearance, the heater can be placed in the sauna in many ways. The heater is made to last heavy use in demanding conditions.
The Narvi Peak heater is an excellent choice for commercial use as spas, communal sauna in apartment buildings, gyms, but it is also ideal for private home use. The functions of the sauna heater are controlled by a separate control panel. There is also a separate thermostat unit, which makes sure that the desired temperature is held in the sauna.
Suitable Sauna control units, which are bought separately, are:
– Control unit Ultra T-2003, daily timer, suitable for heater 6,0–15,0 kW
– Control unit Ultra B-2003, weekly timer, suitable for heater 6,0–15,0 kW
– Control unit N2014E, max. 10,5 kW

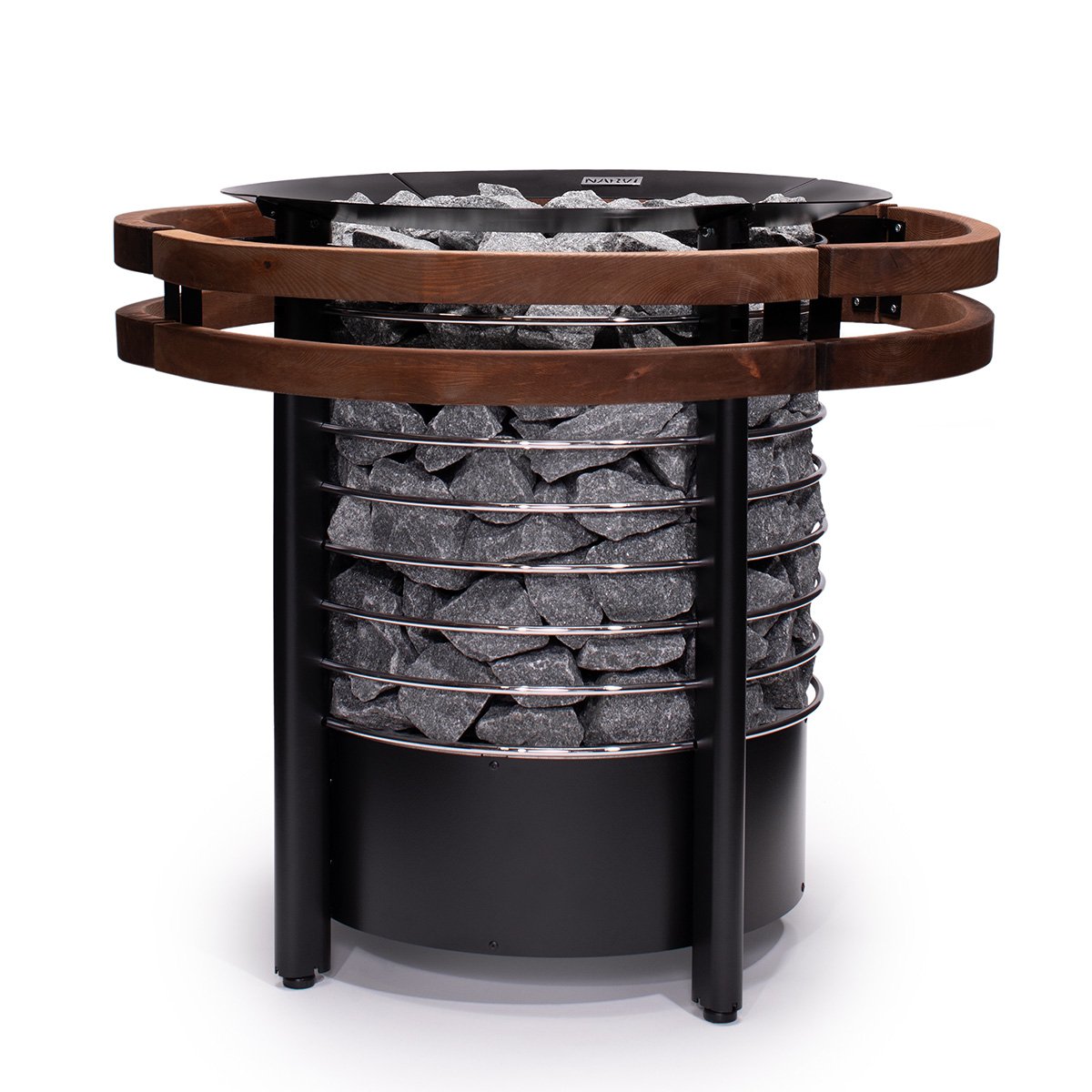

Control unit and thermostat are not included. Optional wooden heater guard is made of heat-treated pine.
The diameter of a heating element of electrical heaters made by NARVI Oy is exceptionally big. This extends the usage life of a heating element and significantly reduces the risk of overheating.
Technical Information
| Peak 10,5 kW | Peak 12 kW | Peak 15 kW | |
|---|---|---|---|
| Sauna room size | 9–15 m³ | 10–18 m³ | 14–20 m³ |
| Effect | 10,5 kW | 12 kW | 15 kW |
| Height | 69 cm | 69 cm | 69 cm |
| Width | 58,5 cm | 58,5 cm | 58,5 cm |
| Depth | 58,5 cm | 58,5 cm | 58,5 cm |
| Product weight | 26 kg | 26 kg | 26 kg |
| Stone capacity | 100 kg *) | 100 kg *) | 100 kg *) |
| Fuse | 3 x 16 A | 3 x 20 A | 3 x 25 A |
| Connection (400V 3N mm²) | 5 x 2,5 | 5 x 4 | 5 x 6 |
| Casing | Painted black, chromium-plated | Painted black, chromium-plated | Painted black, chromium-plated |
| Safety – Sides | 10 cm | 12 cm | 16 cm |
| Safety – Front | 10 cm | 15 cm | 15 cm |
| Safety – Up | 140 cm | 140 cm | 140 cm |
